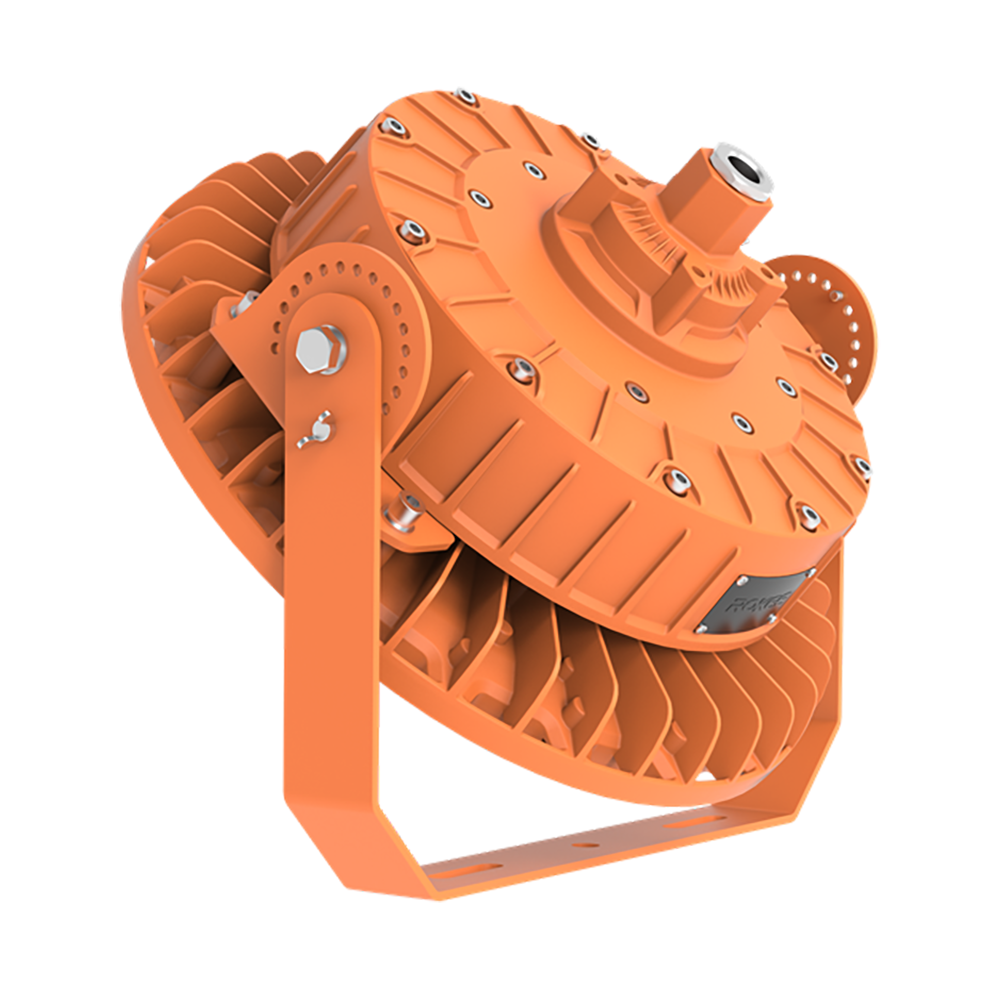

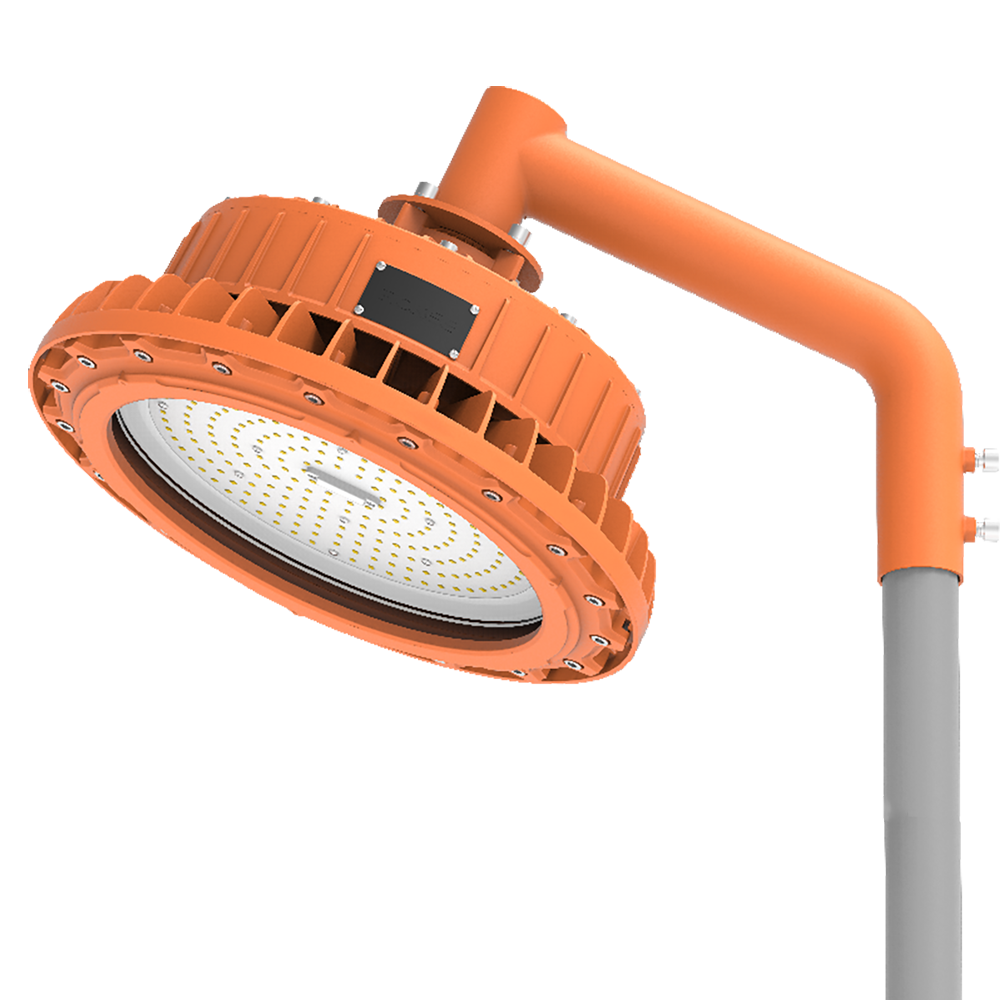

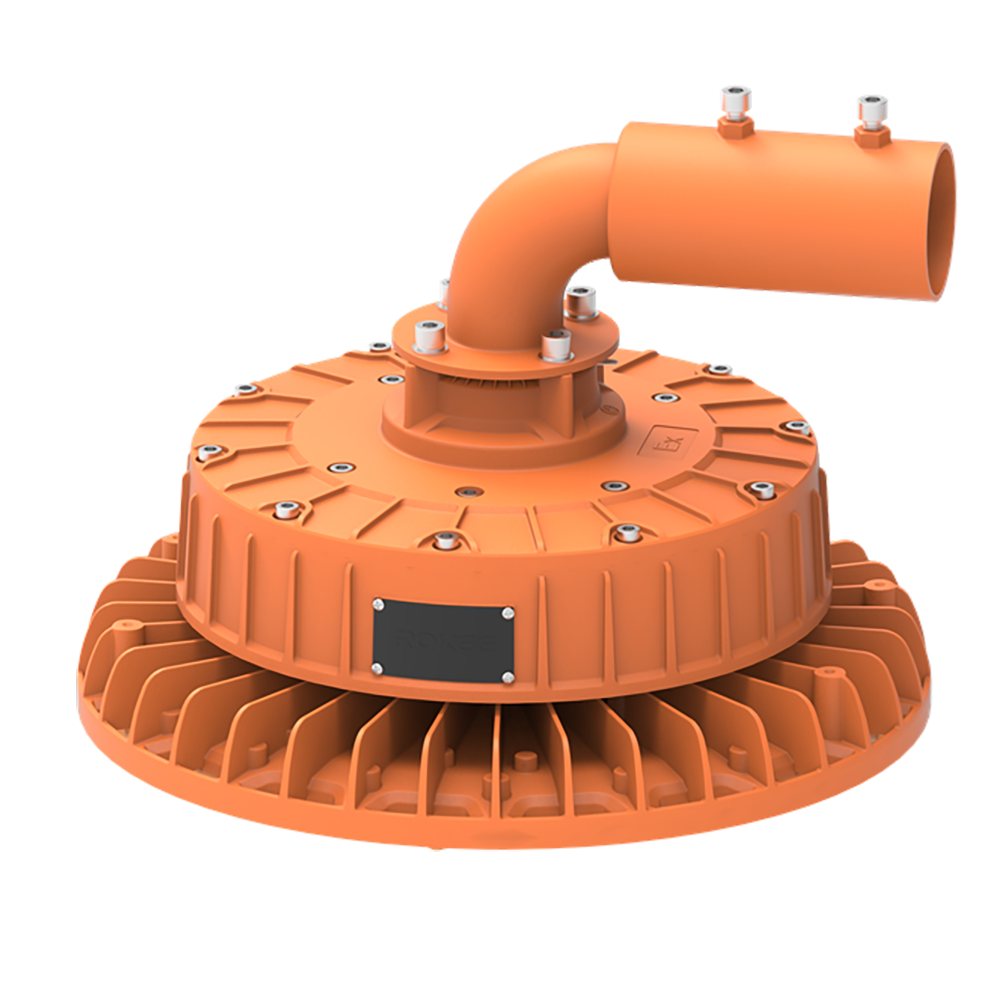

This high-performance explosion-proof 200W LED High Bay is specially designed, tested, and certified for use in hazardous areas (HazLoc areas) offering best-in-class safety and reliability. It is an excellent energy-efficient replacement solution for 400-500W HID explosion-proof highbays.

Minimize Energy and Maintenance Costs
At 140lm/w, these LED high bays are super efficient and will save between 40-70% energy costs compared with the old, inefficient traditional HID counterparts they are designed to replace. They also have a rated life of 50,000 hours, which drastically reduces replacement and maintenance costs which is especially high for any work being done in hazardous areas.

Quality Components and Materials
The Diamond-RN Explosion-proof LED Highbays are built using high-grade materials and utilize quality Lumiled LED Chips powered by top-quality Sosen Drivers for the best long-term performance and consistent light output.

Zone Classification & High IP Rating
Based on the risk of explosive atmospheres, the ATEX (atmospheric explosion) Zone System in South Africa classifies hazardous locations into Zones. Our Diamond-RN Range of Explosion-Proof LED high bays is classed under hazardous Zone Areas 1, 2, 21 & 22.  An Ingress Protection (IP) rating determines the degree of protection that a fixture has against dust and water. These units have an IP66 rating, which makes them perfect for any outdoor applications,  and allows them to be cleaned with a pressure jet.

Solid Warranty
Enjoy the support and confidence of a locally supported, 5-year warranty.

Important Features:

Beam Angle: *30° | 60° | 90° | 120°;
Color Temperature: *5700k (Cool White);
CRI: 80 Ra;
Dimmable: No;
Housing Materials: Die Cast Aluminium;
IP Rating: IP66;
IK Rating: IK08;
LED Chip Brand: Lumileds;
LED Driver: Sosen Driver;
Lumens per Watt: 140lm/w;
Lumen Output: 28000lm;
Operating Frequency: 50-60 Hz;
Power Factor: >0.95;
Rated Lamp Life: 50,000 hrs;
Temperature Range: -40 to +80°C;
Voltage: 230 VAC;
Voltage Input Range: 100 – 277 VAC;
Warranty: 5 Years

Industry Standards:

Certifications:
ATEX, CB, SAA, CE, RoHS, IEC

Standards:
ECM 23 ATEX-B DS47, EN 1127-1:2019, EN 60596, IEC/EN 60079-0-2018 (General Requirement), IEC/EN 60079-1-2014 (Flameproof Enclosure), IEC/EN 60079-28-2015, IEC/EN 60079-31-2014 (Flameproof Enclosure), IEC 60079-1-2014, IEC 60079-0-2017, IEC 60079-31-2021, EU Directive 2014/34/EU

Classifications & Ratings:
Class 1, Division 1, Groups C,D
Class 1, Division 2, Groups A,B,C,D
Class 2, Division 2, Groups E,F,G
Class 3
Zone 1, group IIC
Zone 2, Group IIC
Zone 21, Group IIIC
Zone 22, Group IIIC

Markings:
II 2G db IIC T6 Gb
II 2D Ex tb IIIc T(80C) Db IP66

Verification & Test Report:
XMT0202300247S/ATEX
