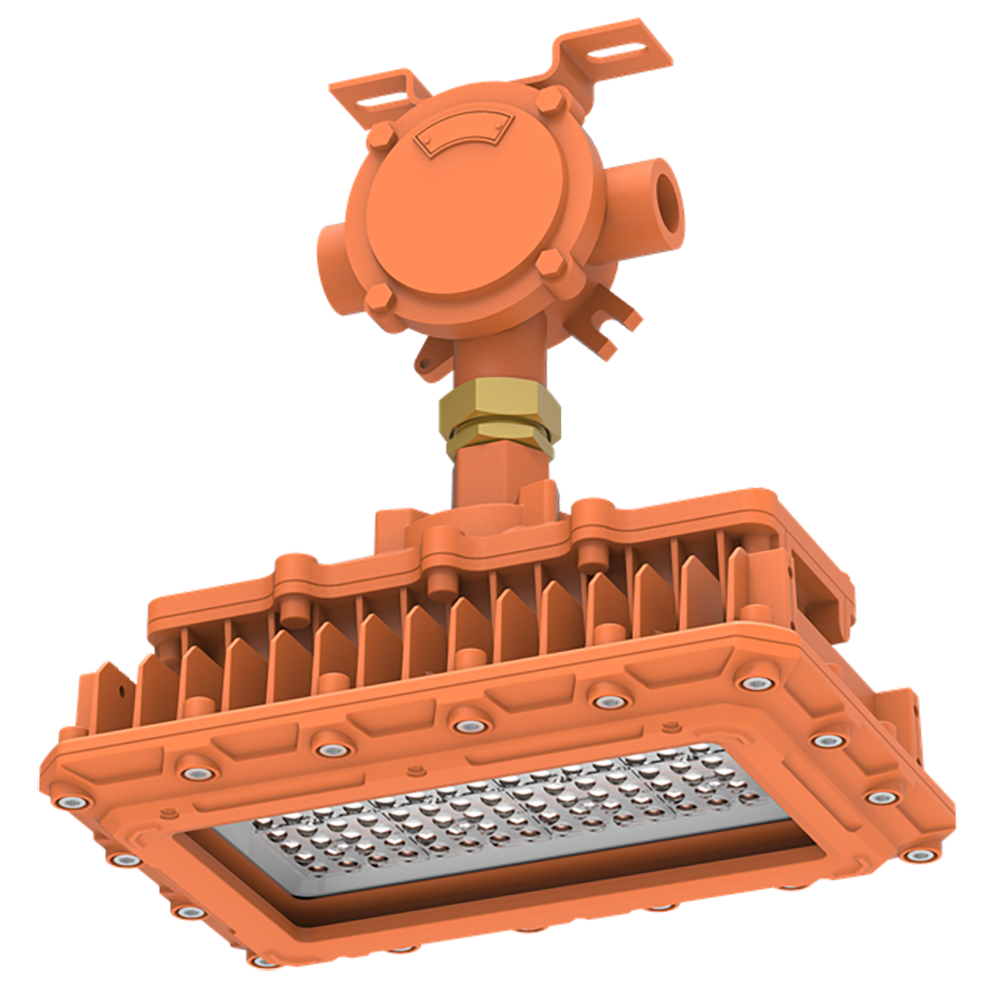

This high-performance explosion-proof 200W LED Floodlight is specially designed, tested, and certified for use in hazardous areas (HazLoc areas) offering best-in-class safety and reliability. It is an excellent energy-efficient replacement solution for 400-500W HID explosion-proof floodlights.
Minimize Energy and Maintenance Costs
At 140lm/w, these LED floodlights are super efficient and will save between 40-70% energy costs compared with the old, inefficient traditional HID counterparts they are designed to replace. They also have a rated life of 50,000 hours, which drastically reduces replacement and maintenance costs which is especially high for any work being done in hazardous areas.
Quality Components and Materials
The Diamond-RN Explosion-proof LED Floodlights are built using high-grade materials and utilize quality Lumiled LED Chips powered by top-quality Sosen Drivers for the best long-term performance and consistent light output.
Zone Classification & High IP Rating
Based on the risk of explosive atmospheres, the ATEX (atmospheric explosion) Zone System in South Africa classifies hazardous locations into Zones. Our Diamond-RN Range of Explosion-Proof LED Floodlights is classed under hazardous Zone Areas 1, 2, 21 & 22. An Ingress Protection (IP) rating determines the degree of protection that a fixture has against dust and water. These units have an IP66 rating, which makes them perfect for any outdoor applications, and allows them to be cleaned with a pressure jet.
Enjoy the support and confidence of a locally supported, 5-year warranty.
Beam Angle: *30° | 60° | 90° | 120°;
Color Temperature: *5700k (Cool White);
CRI: 80 Ra;
Housing Materials: Die Cast Aluminium;
IP Rating: IP66;
IK Rating: IK08;
LED Chip Brand: Lumileds;
LED Driver: Sosen Driver;
Lumens per Watt: 140lm/w;
Lumen Output: 28000lm;
Operating Frequency: 50-60 Hz;
Power Factor: >0.95;
Rated Lamp Life: 50,000 hrs;
Temperature Range: -40 to +80°C;
Voltage: 230 VAC;
Voltage Input Range: 100 – 277 VAC;
Warranty: 5 Years
ATEX, CB, SAA, CE, RoHS, IEC
ECM 23 ATEX-B DS47, EN 1127-1:2019, EN 60596, IEC/EN 60079-0-2018 (General Requirement), IEC/EN 60079-1-2014 (Flameproof Enclosure), IEC/EN 60079-28-2015, IEC/EN 60079-31-2014 (Flameproof Enclosure), IEC 60079-1-2014, IEC 60079-0-2017, IEC 60079-31-2021, EU Directive 2014/34/EU
Classifications & Ratings:
Class 1, Division 1, Groups C,D
Class 1, Division 2, Groups A,B,C,D
Class 2, Division 2, Groups E,F,G
Zone 1, group IIC
Zone 2, Group IIC
Zone 21, Group IIIC
Zone 22, Group IIIC
II 2G db IIC T6 Gb
II 2D Ex tb IIIc T(80C) Db IP66
Verification & Test Report:
